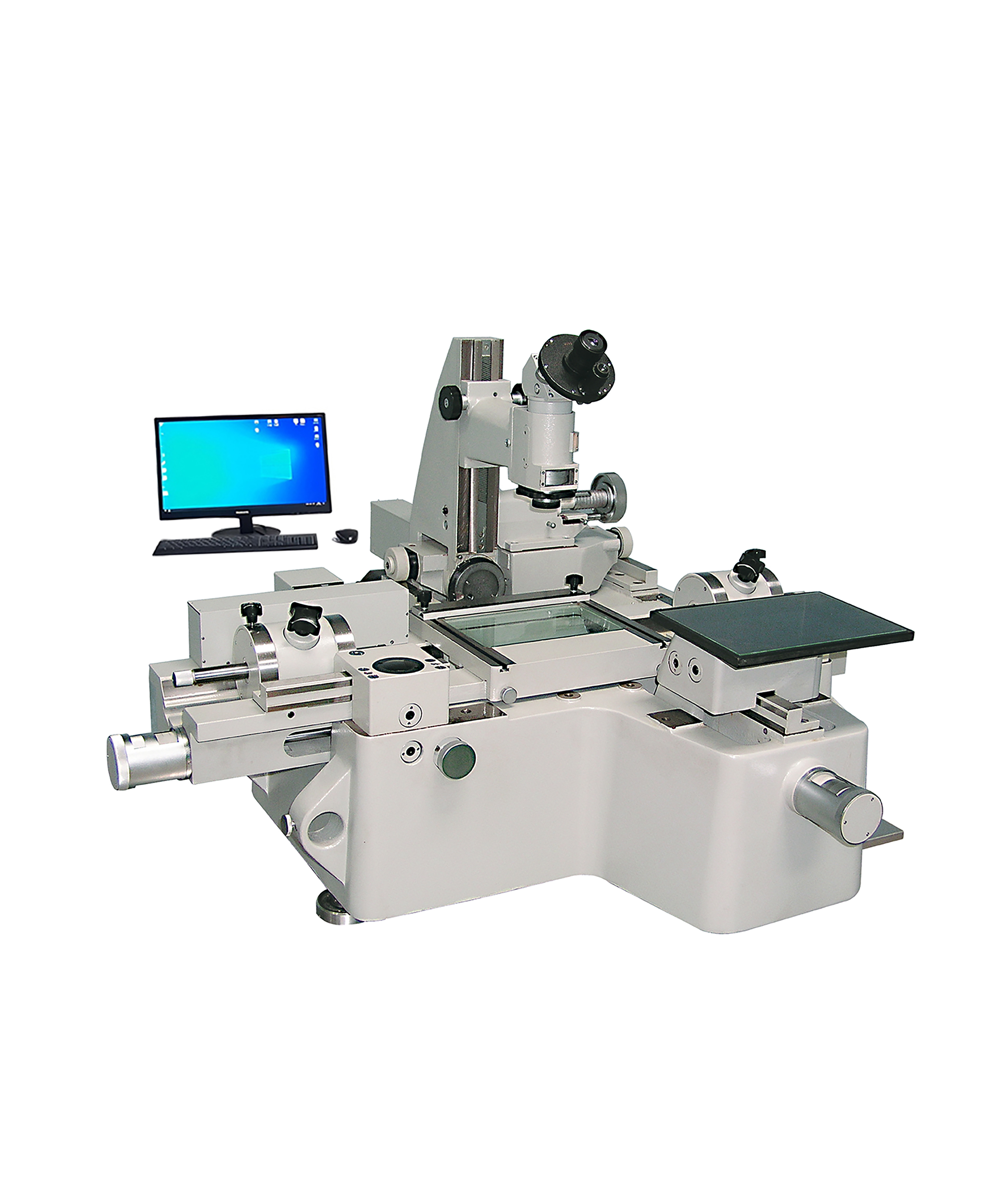

SPTM-13B Digital Universal Toolmaker's Microscope
The Microscopio universal digital SPTM-13B para fabricante de herramientas is a high-precision measuring instrument integrating photoelectric and digital tech. It measures external screw-thread parameters, gear hobber specs, form/location errors, and various shaped parts. Equipped with multiple eyepieces/objectives, precision grating scale, digital display index head (0º~360° range, 5″ resolution), and optical position indicator, it ensures accurate detection. Featuring 2D measuring software (data acquisition, construction, tolerance analysis, coordinate exchange) and data output to AUTOCAD/EXCEL/WORD, it supports complex tasks. Key specs: X/Y ranges 200/100mm, 0.0002mm resolution, (1+L/100)μm accuracy, ±12° angle tilt, and 24V 150W halogen lighting.
Detalles del producto
Características:
The master microscope is equipped with multiple eyepieces and objectives, with large view field and sharp imaging; The photoelectric and digital technology is adopted, taking the precision grating scale as sensory element, with high accuracy of measurement; Advanced computer processing technology is adopted to input collected real-time signals in the grating and video data system into the computer; which were processed by the powerful 2-coordinate measuring software, this instrument can effectively fulfill all kinds of complicated measuring work; The master microscope can out-beat left and right, suitable for the measurement of helical parts; The transmission and indirect lighting can measure profile and the surface sizes; High-speed movement and vernier arrangement are installed and can be switched over speedily; Multiple accessories of tailstock, V-type support, height-measuring device, etc. are equipped, with wide-range uses.
El Universal Toolmaker's Microscope puede medir:
-Measuring the intermediate, coarse and minor-diameter, pitch, tooth-form semi-angle of the external screw-thread for screw-threads, leading screws, worms, etc.;
-Medir el ángulo de adelanto, el ángulo en forma de sierra y el perfil del diente del hobber de engranajes;
-Medir los errores de cifra y ubicación del grado de posición en la placa de circuito, en la plantilla de taladro o en la placa de apertura y los de la simetría en la ranura de la llave, etc.
Medir varios tipos de piezas moldeadas, por ejemplo, placas de muestra, herramienta de torneado de moldeado, cortadora de molde, troquel de punzoncado, leva, etc.;
Parámetros técnicos:
|
Modeloo |
SPTM-13B |
|
Rango de coordenadas X (mm) |
200mm |
|
Rango de coordenadas Y (mm) |
100mm |
|
Resolución: |
0.0002 (mm) |
|
Área de la mesa de trabajo (mm) |
260x270mm |
|
Precisión del instrumento: |
(1+L/100)μm, |
|
Rango de inclinación en ángulo: |
±12° |
|
Diámetro máximo sujeto por la clavija: |
φ100 mm |
|
Longitud máxima agarrada por el contrapunta: |
700 mm |
|
Iluminación de transmisión: |
24V 150W Halogen tungsten lamp |
|
Reflejando la iluminación: |
24V 150W Halogen tungsten lamp |
|
Tamaños totales del instrumento (mm): |
1300×1250×800 |
|
Peso del mainframe: |
450 kg |
Objetivo:
|
Aumento objetivo |
Ampliación total |
working distance (mm) |
Object field (mm) |
|
1X |
10X |
79 |
20 |
|
3X |
30X |
69 |
6.7 |
|
5X |
50X |
49 |
4 |
Cabezal índice de pantalla digital
Angle measuring range: 0º~360º
Resolution ratio of the angle measuring: 5″
Accuracy of the angle measuring: 30″
Indicador de posición óptica
Minimum detection aperture: φ5 mm
Maximum detection depth: 15mm Metering force: 0.1N
Locating stability: 0.001mm
Limit error gauged for head diameter: 0.0005mm
Maximum load of the instrument: 40kg
Overall size of the principal machine of the instrument: (L×B×H) = 1300×1250×800
Weight of the principal machine of the instrument: 450kg
Entorno ambiental del servicio de instrumentos:
Room temperature: 20℃±1°
Relative humidity: Not more than 60%
CD of 2-D imeasuring software
1. Acquisition functions: Acquire dots, lines, circulars and arcs
2. Construction functions: Construct the dots acquired to form the straight line, the circular and the arc
3. Combined computing functions:
The combination calculation between “dot” and “dot” gives their dot distance and midpoint coordinate;
The combination calculation between “dot and line” gives their dot line distance;
The combination calculation between “straight line and straight line for their crossing” gives their intersecting point coordinate and their included angle;
The combination calculation between “straight line and straight line for their centering” gives the central line information for the two lines;
The combination calculation between “circular and circular” gives the information of the crossing points and the center distance of the circulars; and
The combination calculation between “circular and straight” gives the information of their crossing points and the distance from the center of the circular to the line.
4. Functions for the treatment of the shape and location tolerance:
Medición de la redondez entre circular y arco;
Medición de la linealidad;
Medición de la axialidad;
Medición de simetría; y
Medición de la ubicación.
5. Exchange of the coordinate system:
La transición de coordenadas entre la coordenada rectangular y la coordenada polar
Establece la nueva coordenada y pon la coordenada en orden
6. Data output: Outputting to AUTOCAD, EXCEL AND WORD to conduct further data processing.
